UL2464 Certified Standard Cable (General Type)

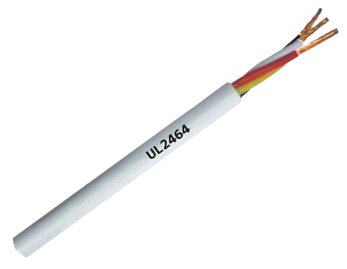

A close-up of a multicolored electrical cable with exposed wires at the end, lying on a white surface.

Description:

  • UL2464 cable is a multi-conductor shielded control and signal cable designed for measurement, monitoring, and control applications.

  • The cable features excellent heat resistance, flame retardancy, insulation performance, and chemical stability.

  • The outer sheath is tightly extruded around the insulated cores to ensure superior mechanical protection and flexibility.

  • Manufactured in compliance with UL758, UL1581, and CSA C22.2 No.210.2 standards.

Applications:

  • It is widely used in machine tool manufacturing, equipment installation, power plants, HVAC systems, refrigeration units, office automation, and data processing systems.

  • Measurement, control, and monitoring systems

  • Machine tools and industrial automation equipment

  • Power stations, HVAC and refrigeration systems

  • Office automation and data processing equipment

  • Suitable for both fixed and flexible installations

Technical Specifications:

  • Rated Voltage: 300V

  • Test Voltage: 2000V

  • Test Temperature: 80°C (176°F)

  • Operating Temperature Range:

    • Fixed installation: −40°C to +80°C (−40°F to +176°F)

    • Flexible installation: −10°C to +80°C (14°F to +176°F)

  • Conductor: Stranded bare or tinned copper wire, highly corrosion-resistant

  • Insulation: Special hard, heat-resistant, flame-retardant PVC

  • Insulation Colors: Available in various colors upon request

  • Sheath: Mixed 80°C flame-retardant PVC, compliant with UL VW-1 flame test

  • Sheath Colors: Green (RAL6018), Black (RAL9005), Orange (RAL2003), Purple (RAL4001)

    • Custom colors available upon request

  • Minimum Bending Radius:

    • Fixed installation: 4 × cable diameter

    • Flexible installation: 15 × cable diameter
