UL1672 Certified Electrical Wire

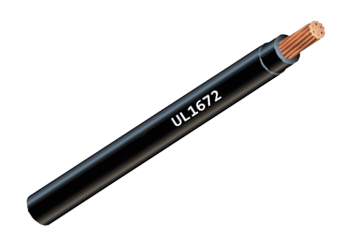

Close-up of a black electrical cable with copper wires exposed at the end. The cable has white text reading 'UL1672' printed on it.

Description:

  • UL1672 wire is a PVC-insulated hookup wire designed for internal wiring of electrical and electronic equipment.
    It provides excellent flexibility, uniform insulation, and superior flame resistance, ensuring easy processing and reliable performance.

  • Manufactured in compliance with UL758, UL1581, and CSA C22.2 No.210.05 standards, this wire meets RoHS requirements and uses lead-free PVC insulation for environmental safety.

Application:

  • Used for internal wiring of electronic and electrical equipment.

  • Can be substituted by UL10937 wire type.

Technical Specifications

  • Rated Temperature: 105°C (221°F)

  • Rated Voltage: 300V

  • Standards: UL758 & UL1581 and CSA C22.2 No.210.05

  • Conductor: Single or stranded bare/tinned soft copper wire

  • Insulation Thickness: 5–40 mils (0.127–1.016 mm)

  • Insulation: Lead-free PVC, uniform thickness for easy stripping and cutting

  • Flame Test: Complies with UL VW-1 and CSA FT1 vertical flame tests
