UL1617 Certified Electrical Wire

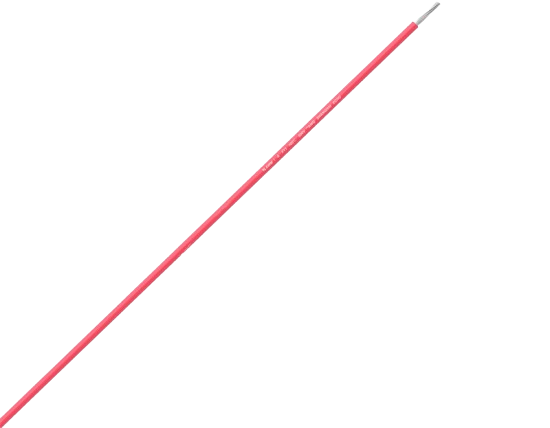

A thin, elongated, pink candle with a metal tip at the top and a wick.

Description:

  • UL1617 wire is a PVC-insulated hookup wire designed for internal wiring of electrical and electronic equipment.
    It offers high flexibility, uniform insulation, and excellent flame resistance. Manufactured according to UL758, UL1581, and CSA C22.2 No.210.05 standards, this wire uses lead-free PVC insulation, is RoHS compliant, and suitable for 600V rated applications.

Application:

  • Used for internal wiring of electronic and electrical equipment.

  • Can be substituted by UL10938 wire type.

Technical Specifications:

  • Rated Temperature: 105°C (221°F)

  • Rated Voltage: 600V

  • Standards: UL758 & UL1581 and CSA C22.2 No.210.05

  • Conductor: 30–16 AWG single or stranded bare/tinned copper wire

  • Insulation: Lead-free PVC insulation, uniform thickness for easy stripping and cutting

  • Flame Test: Complies with UL VW-1 and CSA FT1 vertical flame tests
