UL1571 Certified Electrical Wire

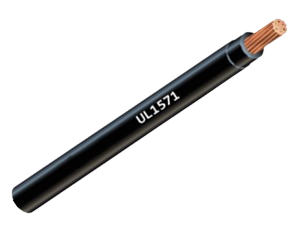

Close-up of a black electrical cable with copper wires exposed at the end, labeled UL1571.

Description:

  • UL1571 wire is a PVC-insulated hookup wire designed for internal wiring of electronic and electrical equipment.
    It features excellent flexibility, consistent insulation thickness, and reliable flame resistance.

  • Manufactured according to UL758, UL1581, and CSA C22.2 No.210.05 standards, the wire uses lead-free PVC or semi-rigid PVC insulation, ensuring RoHS compliance and safe performance for low-voltage applications.

  • Ultra-fine wire versions are available upon request.

Applications:

  • Used for internal wiring of electronic and electrical equipment.

Technical Specifications:

  • Rated Temperature: 80°C (176°F)

  • Rated Voltage: 300V

  • Standards: UL758 & UL1581 and CSA C22.2 No.210.05

  • Conductor: 50 AWG and finer, single or stranded bare/tinned copper wire (bare-stranded, plated-stranded, or tinned configurations available)

  • Insulation: Lead-free PVC or semi-rigid PVC insulation, uniform thickness for easy stripping and cutting

  • Flame Test: Complies with UL VW-1 and CSA FT1 vertical flame tests
