RVVYP Oil-Resistant Shielded Cable

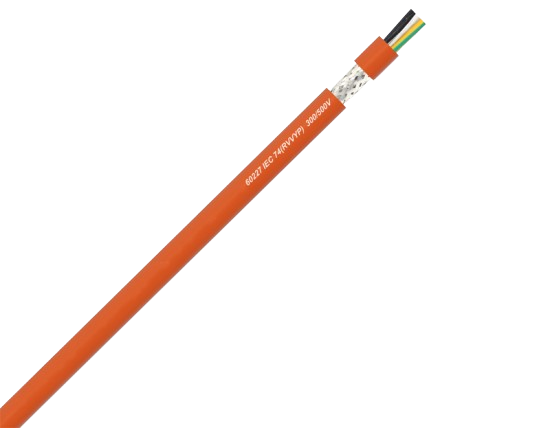

Close-up of a coaxial cable with an orange outer jacket, exposing inner wires and shielding.

Description:

  • RVVYP is an oil-resistant, PVC-insulated, shielded flexible control cable designed for industrial environments with occasional bending and motion.

  • It is suitable for installation in dry or damp indoor locations, under light mechanical stress and occasional movement, such as in machine tools, woodworking machines, grinders, and similar equipment.

  • The cable features oil resistance, water resistance, cold resistance, and flame retardancy, providing a longer bending life than standard fixed-installation cables.

  • It is not intended for continuous drag-chain applications.

  • Complies with GB 5023.7-2008 / IEC 60227-7: Polyvinyl chloride insulated cables for fixed

Applications:

  • Used for signal transmission, control, and power connection in industrial machinery and production environments exposed to lubricants or cutting oils.

  • Ideal for machine tools, woodworking equipment, and processing machinery requiring occasional movement and EMI protection.

  • Recommended for fixed or light-duty flexible installation where shielding and oil resistance are required.

Technical Specifications:

  • Rated Voltage: 300 / 500 V
    (Equivalent UL rating: 300 V, max 16 AWG, 80 °C)

  • Test Voltage: 2000 V

  • Standards:

    • GB 5023.7 – 2008 ↔ IEC 60227-7: Polyvinyl chloride insulated cables for fixed wiring — Control cables

    • GB/T 2951.5 ↔ IEC 60811-2-1: Tests for non-metallic materials for cables — Oil immersion test

    • ASTM Oil Resistance Standard

    • CCC Certified (China Compulsory Certification)

  • Conductor: Fine-stranded oxygen-free copper wire per VDE 0295 Class 5 / IEC 60228 Class 5

  • Insulation: Specially compounded PVC insulation with high oil and temperature resistance

  • Color Code:

    • For ≤ 0.5 mm² cores: brown, black, blue, purple, pink, orange

    • For ≥ 0.5 mm² with 3 or more cores: black cores with white numbering (1, 2, 3, …) and one yellow-green grounding conductor (optional)

  • Shield: Braided bare copper or tinned copper wire shield (optional)

  • Sheath:

    • Special modified oil-resistant PVC sheath

    • Color: black (RAL 9005) or gray (RAL 7001)

  • Operating Temperature Range:

    • Fixed installation: −40 °C to +70 °C

    • Flexible installation: −5 °C to +70 °C

  • Minimum Bending Radius:

    • Fixed installation: 4 × cable diameter (D)

    • Flexible installation: 15 × cable diameter (D)

  • Properties:

    • Oil-resistant (ASTM tested)

    • Water-resistant and cold-resistant

    • Flame-retardant (GB/T 18380 ↔ IEC 60332-1)

    • Longer bending life (not for continuous chain use)
