RVVY Oil-Resistant Flexible Cable

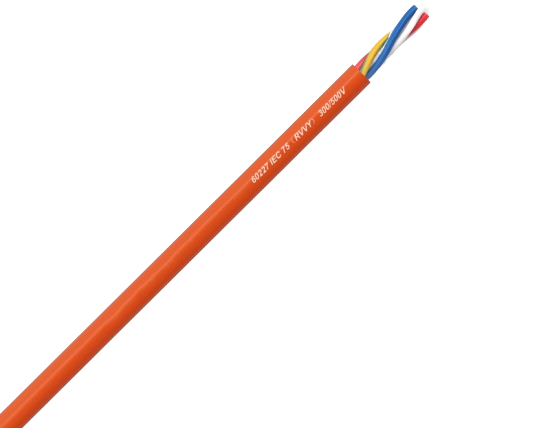

Close-up of a multi-conductor electrical cable with the outer insulation partially stripped to show the internal wires.

Description:

  • RVVY is an oil-resistant, flexible, multi-core PVC-insulated and sheathed control cable designed for use in industrial environments with occasional bending and movement.

  • It is suitable for installation in dry or damp indoor locations, where the cable may be subject to occasional motion without tensile stress or forced guidance, such as in machine tools, woodworking machines, grinders, and similar industrial equipment.

  • The cable offers excellent resistance to oil, water, cold, and flames, providing enhanced mechanical durability and a longer service life than ordinary installation wires.
    It is not intended for continuous drag chain applications.

  • Complies with IEC 227-7:1995 / GB 5023.7-2008, with oil resistance tested per ASTM standards and material performance evaluated according to GB/T 2951.5.

Applications:

  • Used for signal transmission, control, and power connection in industrial machinery, manufacturing lines, and workshop environments exposed to oil or lubricants.

  • Suitable for machine tools, woodworking, grinding, and processing equipment operating in oily or humid conditions.

  • Designed for fixed installation or light-duty flexible use with occasional movement.

Technical Specifications:

  • Rated Voltage: 300/500V
    (Equivalent UL rating: 300/300V, max. 16AWG, 80°C)

  • Test Voltage: 2500V

  • Standards:

    • GB 5023.7 - 2008 ↔ IEC 60227-7: Polyvinyl chloride insulated cables for fixed wiring — Control cables

    • GB/T 2951.5 ↔ IEC 60811-2-1: Tests for non-metallic materials for cables — Oil immersion test

    • ASTM Oil Resistance Standard

  • Conductor: Fine stranded oxygen-free copper wire per VDE 0295 Class 5 / IEC 60228 Class 5

  • Insulation: Specially compounded PVC insulation with enhanced oil and temperature resistance

  • Color Code:

    • Up to 5 cores: brown, black, light blue, black or brown, and yellow-green

    • For cables ≥0.5 mm² with more than 5 cores: black cores with white numbering (1, 2, 3, …) and one yellow-green grounding conductor (optional)

  • Sheath:

    • Special modified oil-resistant PVC sheath

    • Color: black (RAL9005) or gray (RAL7001)

  • Operating Temperature Range:

    • Fixed installation: −40°C to +105°C

    • Flexible installation: −5°C to +70°C

  • Minimum Bending Radius:

    • Fixed installation: 4 × cable diameter (D)

    • Flexible installation: 15 × cable diameter (D)

  • Properties:

    • Oil-resistant (ASTM tested)

    • Flame retardant (IEC 60332-1)

    • Water-resistant and cold-resistant

    • Extended bending lifespan (not for continuous chain applications)
