Medium-Flex Twisted Pair Shielded Cable (TRVVSP)

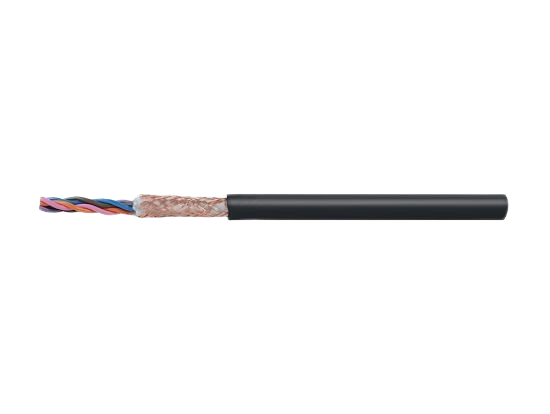

Close-up of an Ethernet cable showing the internal wires

Product Features

  • Bending lifespan: Over 10 million cycles

  • Travel speed: Up to 3 m/s

  • Characteristics: Resistant to oil, water, UV, and weathering; cold- and abrasion-resistant with solid mechanical strength.
    Provides stable signal transmission with excellent anti-interference and crosstalk prevention.

Application:

  • Designed for continuous motion and frequent bending in industrial environments — ideal for drag chain systems, logistics and control systems, and automation equipment such as CNC machines, robotics, injection molding, and other applications requiring shielded, reliable signal performance in both indoor and outdoor settings.

Technical Specification

  • Conductor: Multi-stranded, ultra-fine oxygen-free copper wire

  • Insulation: Special blended PVC insulation

  • Color Coding:

    • ≤ 0.5 mm² — paired conductors:
      A-core colors: brown, black, blue, violet, pink, orange;
      B-core: black cores matched in pairs

    • ≥ 0.5 mm² — black cores with white numbering; adjacent numbered pairs

  • Core Structure: Pair-twisted cores arranged in layers with anti-torsion bundle design

  • Shielding: Bare copper braided shield, coverage ≥ 70%

  • Sheath: Special PVC compound

  • Sheath Color: Black (RAL9005), Gray (RAL7001), Orange (RAL2003)
