35 Series Low-Noise Carrier

Diagram of a drag chain system with a sketch map, main body, and connector, labeled with features such as fast wiring, light weight, and corrosion resistance.

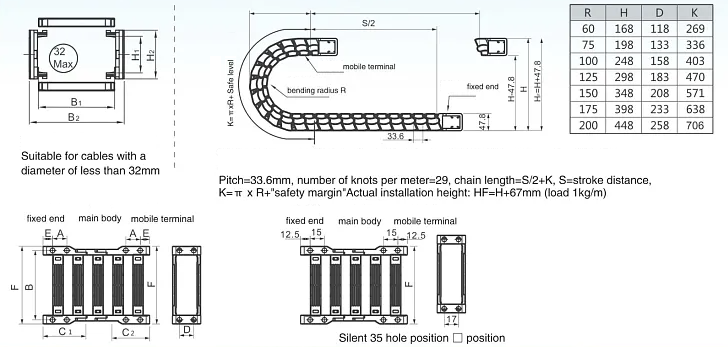

Technical engineering drawing of a cable chain or cable carrier, including dimensions and specifications, with sections labeled for fixed end, main body, and mobile terminal.

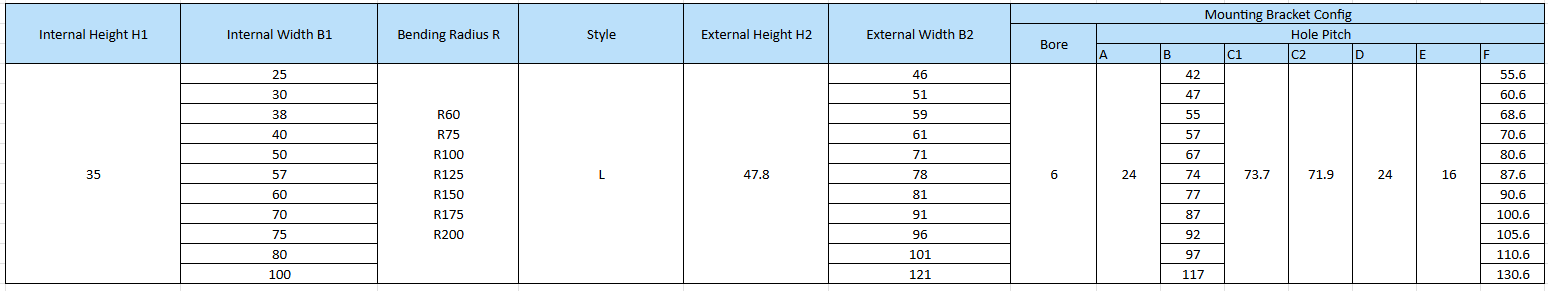

A technical specification table detailing internal and external dimensions, bend radius, style, and mounting bracket configuration for a component, including measurements in millimeters.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
