KVVRP Shielded Flexible Control Cable

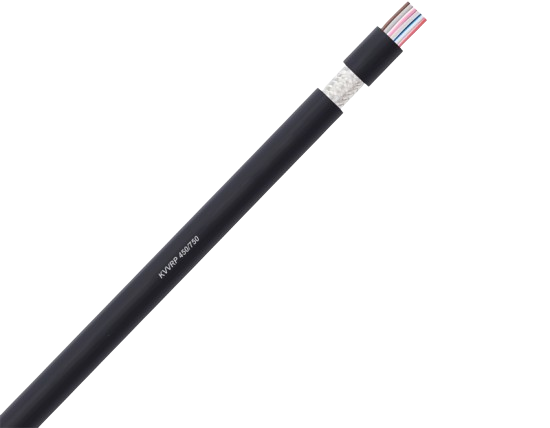

Close-up of a black electrical cable with exposed copper wires at the end.

Description:

  • KVVRP cable is a shielded flexible copper-core control cable with PVC insulation and sheath, designed for control, monitoring, and protection circuits requiring bending movement and anti-interference performance.

  • Manufactured according to GB/T 9330.2 (equivalent to IEC 60227-7: Polyvinyl chloride insulated cables for fixed wiring — Control cables) and GB/T 3956 (equivalent to IEC 60228: Conductors of insulated cables), this cable provides excellent mechanical strength, insulation properties, flexibility, and reliable shielding for safe operation in moving applications.

Applications:

  • Used for control, monitoring, measurement, and protection circuits in systems requiring signal shielding.

  • Widely applied in electrical instruments, distribution panels, automation systems, metering, signal transmission, and alarm systems.

  • Suitable for indoor wiring, control cabinets, cable trenches, conduits, and other flexible installation environments where anti-interference is essential.

  • Ideal for measurement, testing, remote monitoring, computer networking, and control signal systems.

Technical Specifications:

  • Rated Voltage: 450/750V

  • Test Voltage：

    • Insulation thickness ≤ 0.6 mm: 2000V

    • Insulation thickness > 0.6 mm: 2500V

    • Outer sheath test: 3000V

  • Standards：

    • GB/T 9330.2 — equivalent to IEC 60227-7

    • GB/T 3956 — equivalent to IEC 60228

  • Conductor：Class 5 stranded copper conductor per GB/T 3956 (IEC 60228)

  • Insulation ：Flexible PVC/D-type PVC insulation for movable applications

  • Color Code：

    • For cables with ≥5 cores: black cores with white numbering (1, 2, 3, …), arranged clockwise from inner to outer layer

    • One yellow-green grounding conductor placed in the outermost layer

  • Core Structure：

    • Gaps between conductors filled; optional isolation wrapping with PP tape, aluminum foil, or nonwoven fabric

    • Non-sticky insulated cores to ensure flexibility

  • Shield：Braided bare or tinned copper wire shield for electromagnetic protection

  • Sheath：PVC/ST5 sheath, color black (RAL9005) or gray (RAL7001)

  • Minimum Bending Radius：

    • Fixed installation: 6 × cable diameter (D)

    • Flexible installation: 12 × cable diameter (D)

  • Operating Temperature Range：

    • Fixed installation: −10°C to +70°C

    • Flexible installation: −5°C to +70°C
