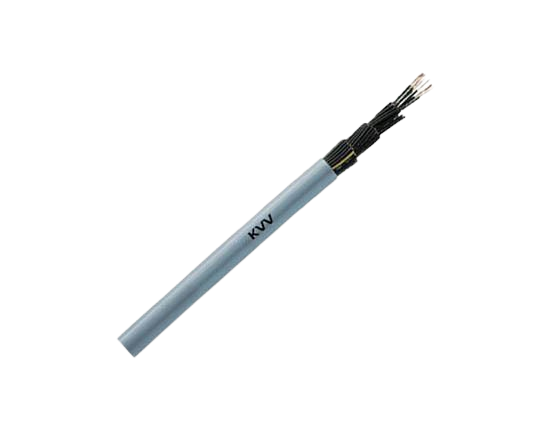

KVV PVC Sheathed Control Cable

A fiber optic cable with a black connector and multiple thin wire strands at the end, lying against a black background.

Description:

  • KVV is a PVC-insulated and sheathed control cable designed for fixed installation in control, monitoring, and protection circuits.

  • It features copper conductors, PVC insulation, and a durable PVC sheath, providing excellent mechanical strength, insulation performance, and flame retardancy for reliable signal transmission in fixed wiring systems.

  • Manufactured in accordance with GB/T 9330.2 (equivalent to IEC 60227-7: Polyvinyl chloride insulated cables for fixed wiring — Control cables) and GB/T 3956 (equivalent to IEC 60228: Conductors of insulated cables).

Applications:

  • Used for control, monitoring, measurement, and protection circuits in electrical instruments, distribution panels, metering, signal transmission, automation, and alarm systems.

  • Commonly installed indoors, in cable trenches, conduits, or other fixed environments where flexibility is not required.
    Ideal for measurement, testing, remote monitoring, computer networking, and signal control systems.

Technical Specifications:

  • Rated Voltage: 450/750V

  • Test Voltage:

    • Insulation thickness ≤ 0.6 mm: 2000V

    • Insulation thickness ≥ 0.6 mm: 2500V

    • Outer sheath test: 3000V

  • Standards:

    • GB/T 9330.2 — equivalent to IEC 60227-7

    • GB/T 3956 — equivalent to IEC 60228

  • Conductor: Class 1 or Class 2 stranded copper conductors (GB/T 3956 / IEC 60228)

  • Insulation: PVC/A-type polyvinyl chloride insulation for fixed installations

  • Color Code:

    • For cables with five or more cores: black cores with white printed numbers (1, 2, 3, …), arranged clockwise from the inner to outer layer

    • One yellow-green grounding conductor placed in the outermost layer

  • Core Structure: Optional filling between conductors; optional isolation wrapping with PP tape or nonwoven fabric

  • Sheath: PVC/ST1 sheath for fixed installation, color black (RAL9005) or gray (RAL7001)

  • Minimum Bending Radius:

    • Fixed installation: 6 × cable diameter (D)

    • Flexible installation: 12 × cable diameter (D)

  • Operating Temperature Range:

    • Fixed installation: −10°C to +70°C

    • Flexible installation: −5°C to +70°C

  • Radiation Resistance:

    • 8 × 10⁷ cJ/kg

  • Flame Retardancy: Passed GB/T 18380 (IEC 60332-1) flame retardant test
