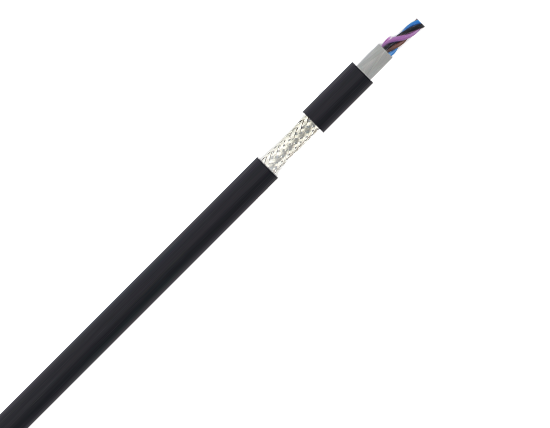

Double-Sheathed Medium-Flex Shielded Drag Chain Cable

Close-up of a black stylus resting on a white digital tablet or electronic device with a black background.

Product Features

  • Bending lifespan: Over 10 million cycles

  • Travel speed: Up to 5 m/s

  • Characteristics: Oil-, water-, and UV-resistant with excellent flexibility and mechanical strength. Provides superior EMC performance and reliable signal protection under continuous motion

Application:

  • Ideal for drag chain systems, automation equipment, CNC machines, and robotics, both indoors and outdoors.

Technical Specifications

  • Conductor: Multi-stranded, ultra-fine oxygen-free copper wire

  • Insulation: Special blended PVC insulation

  • Color Coding:

    • ≤ 0.5 mm² — colored cores: brown, black, blue, violet, pink, orange

    • ≥ 0.5 mm² — black cores with white numbering; three cores and above include a yellow-green grounding wire

  • Core Structure: Anti-twist layered or grouped structure with gap filling

  • Shielding: Tinned copper braided shield, coverage ≥ 80%

  • Sheath:

    • Inner Sheath: Modified low-viscosity, high-pressure extruded PVC with oil resistance

    • Outer Sheath: Special modified PVC compound for enhanced durability

  • Outer Sheath Color: Black (RAL9005), Gray (RAL7001), Orange (RAL2003)
