7 Series - Micro Bridge Cable Carrier

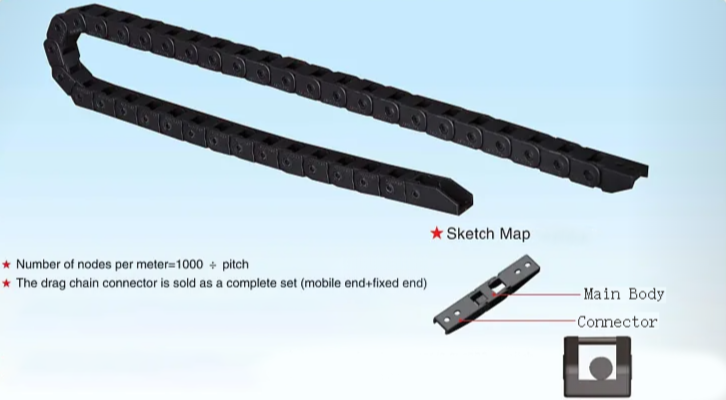

A black drag chain with a flexible design, shown in a partially assembled state against a light blue background. There is a diagram of its main components, including the main body and connector, with annotations and a sketch map explaining the chain's structure.

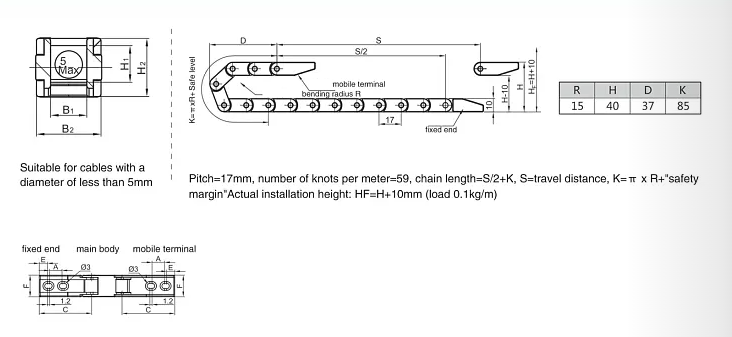

Technical drawing of a chain link with measurements and specifications for cable and chain installation.
A technical table with specifications for mounting brackets, including dimensions and configurations.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
