68s Bridge Reinforced Cable Carrier

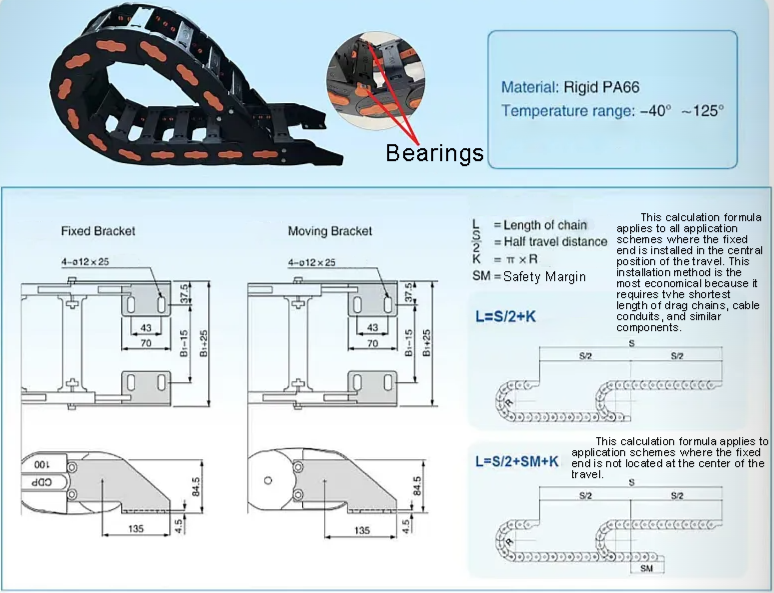

Diagram of a conveyor chain with labeled sections for bearings, fixed and moving brackets, featuring technical specifications and calculation formulas for chain length, with a background of blue information panels.
A table detailing specifications for bridge type pieces, including inner height and width, outer height and width, bending radius, link pitch, non-support length in meters, and number of pieces. The table lists measurements from 68x75 to 68x300, with a consistent bending radius of 112, link pitch of 6.5 meters, and four pieces per set.
