5 Series - Micro Bridge Cable Carrier

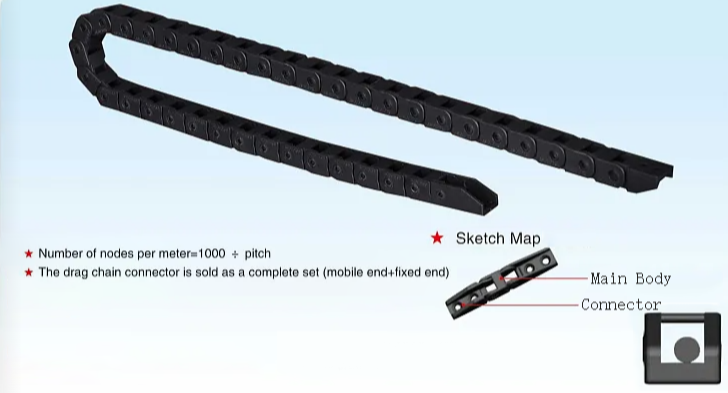

Diagram of a black drag chain with a sketch map showing the main body and connector parts, used to protect cables or hoses.
Technical drawing of a roller chain with dimensions, showing fixed and mobile ends, with specifications for cable compatibility and installation measurements.

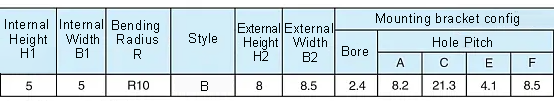

Table with technical specifications including internal height, width, bending radius, style, external height and width, mounting bracket configuration, bore, and hole pitch.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
