55 Series Reinforced Cable Carrier

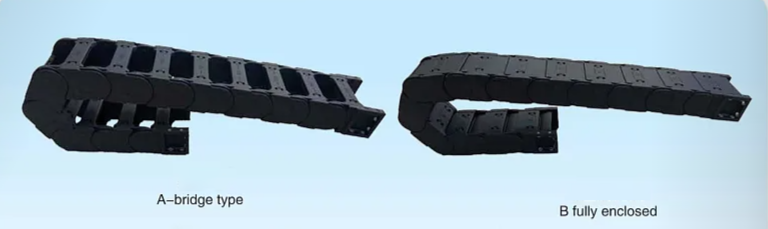

Comparison of two types of tracked vehicle belts: one labeled 'A-bridge type' and the other labeled 'B-fully enclosed' against a light blue background.

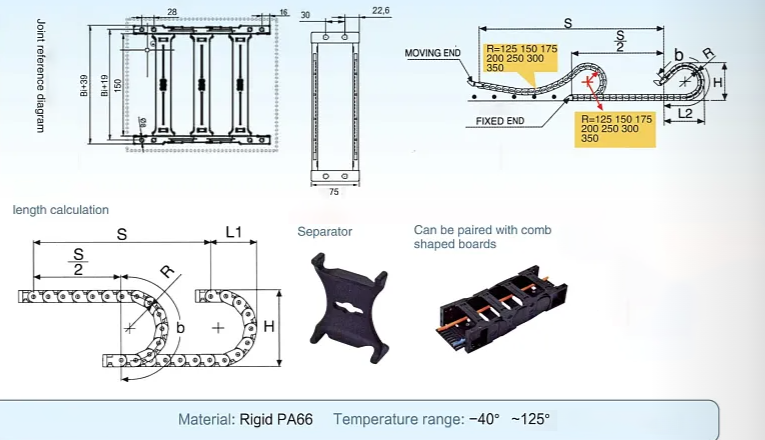

Technical engineering diagram of conveyor chain components featuring detailed measurements, a separator part, and a description of chain radius specifications, including material and temperature range.

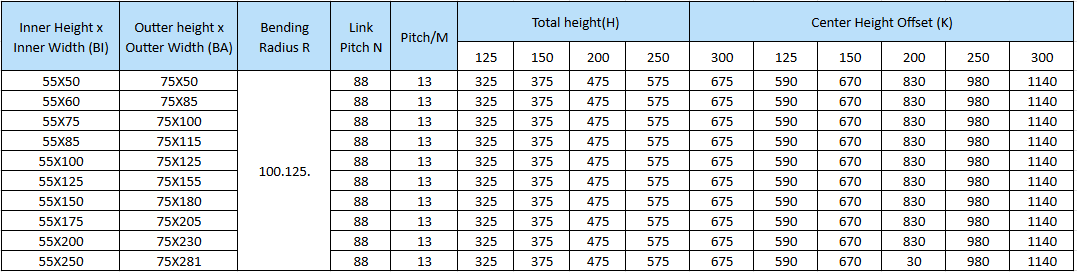

A technical table showing dimensions and specifications of rectangular objects, including inner height, inner width, outer height, outer width, bending radius, link pitch, pitch, total height, and center height offset, with various size options listed.
