48s Bridge Reinforced Cable Carrier

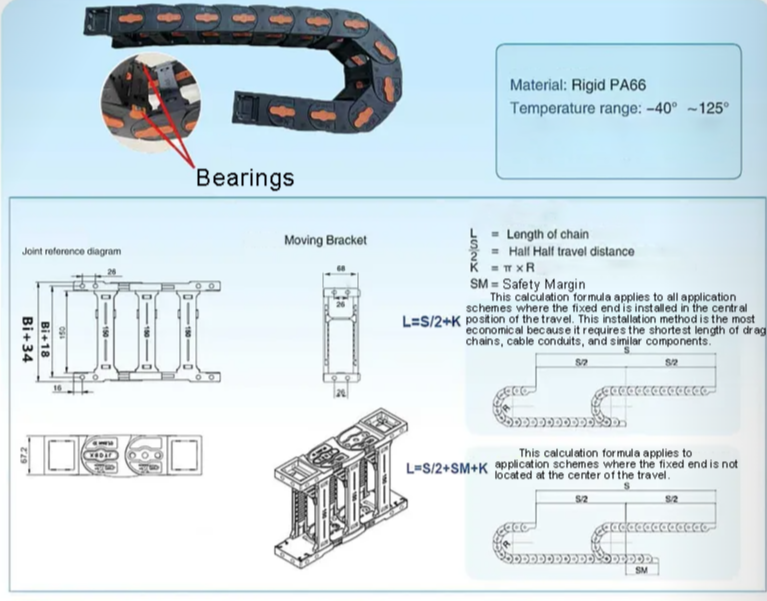

Diagram of a support chain with labeled components including bearings and a moving bracket, alongside technical specifications, mathematical formulas, and schematic drawings related to chain length and applications.

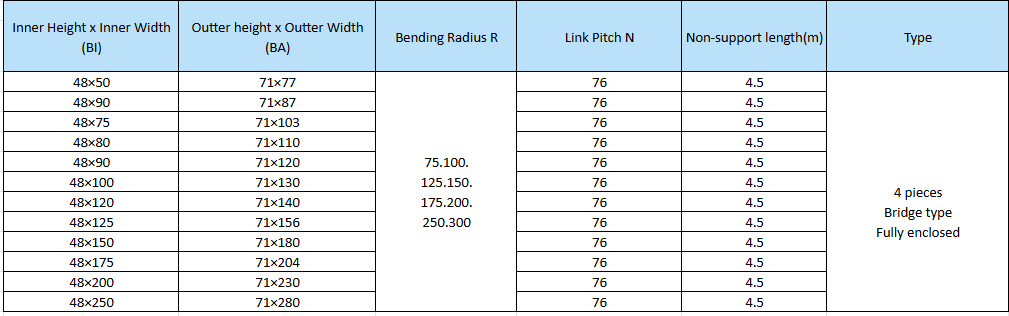

Table with dimensions and specifications for various pieces of a bridge, including inner and outer height and width, bending radius, link pitch, non-support length, and type, which is specified as fully enclosed bridge type.
