45 Series Low-Noise Carrier

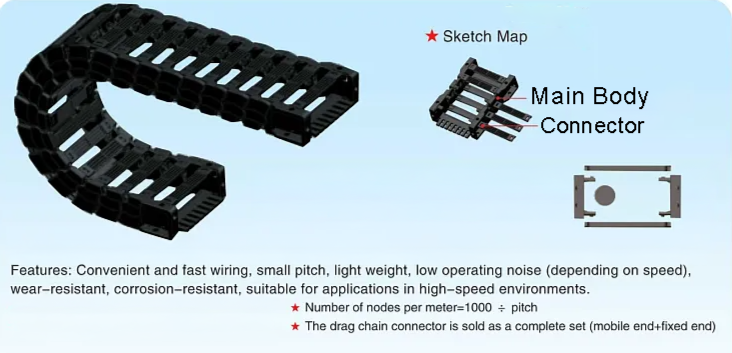

Diagram of a drag chain cable management system with a small black plastic chain, a sketch map, a main body component, and connectors, highlighting features like easy wiring, lightweight design, and high-speed suitability.

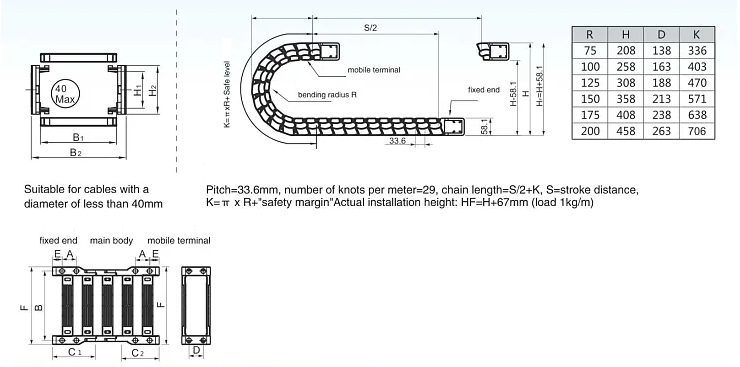

Technical diagram of a cable chain, showing dimensions, structure, and specifications such as pitch, chain length, and maximum size. Includes a table with different size options and a top view of the chain's cross-section.

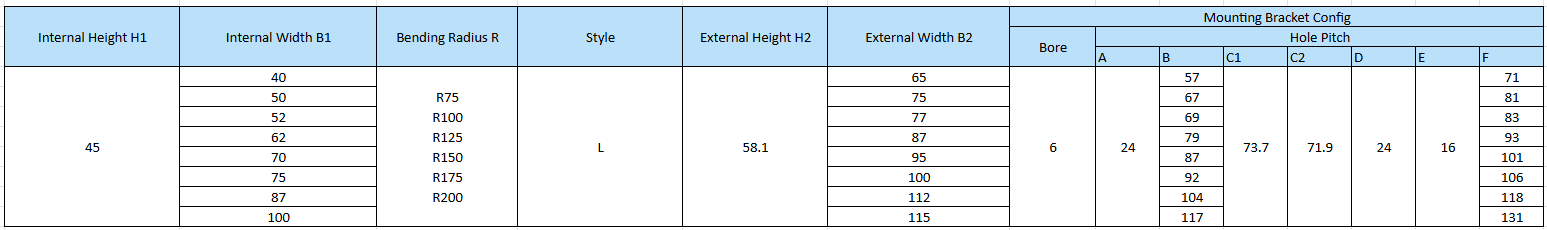

A technical table with dimensions and specifications, including columns labeled Internal Height H1, Internal Width B1, Bending Radius R, Style, External Height H2, External Width B2, Mounting Bracket Config, Hole Pitch, and Bore. The table contains numerical values and some text entries related to engineering or manufacturing specifications.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
