18s Bridge Cable Carrier

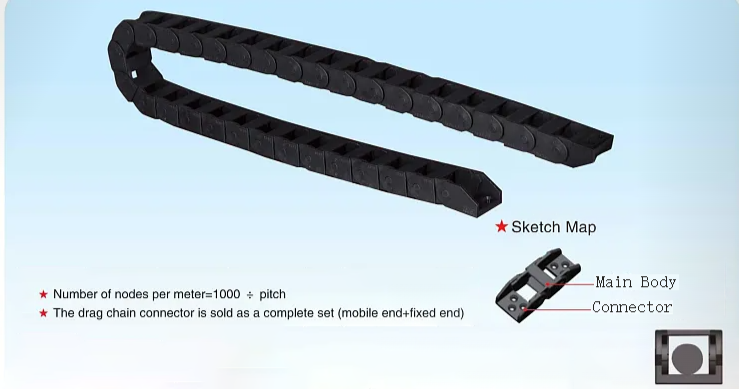

A black drag chain with individual links, shown with a sketch map and labeled parts including main body and connector. The image includes notes about node count and the drag chain connector, displayed on a light blue background.

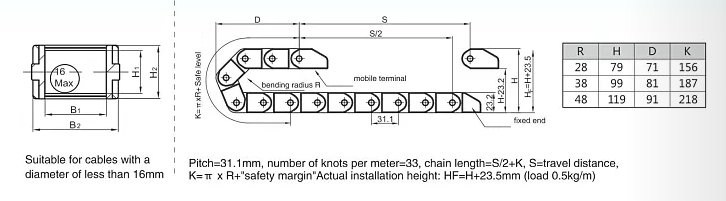

Engineering diagram of a cable chain or drag chain with measurements and specifications, showing dimensions, bend radius, chain links, and mounting details.

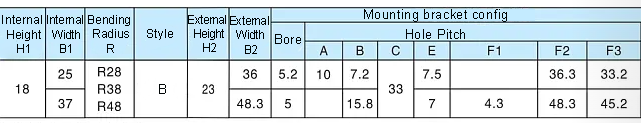

Table with technical data including internal height, internal width, bending radius, style, external height and width, mounting bracket configuration, bore size, and hole pitch measurements.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
