40 Series Low-Noise Carrier

Diagram of a black drag chain with a sketch map showing its main body and connector, including features like fast wiring, lightweight, and corrosion resistance for high-speed environments.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening

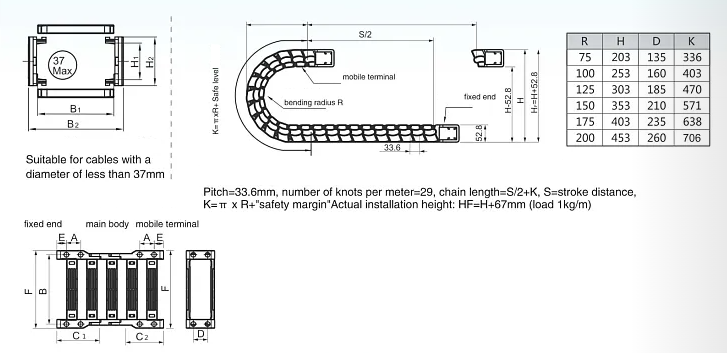

A technical diagram of a cable chain with detailed measurements, dimensions, and specifications for technical assembly, including views of the chain's cross-section, side, and top views, as well as a chart listing sizes and load capacities.

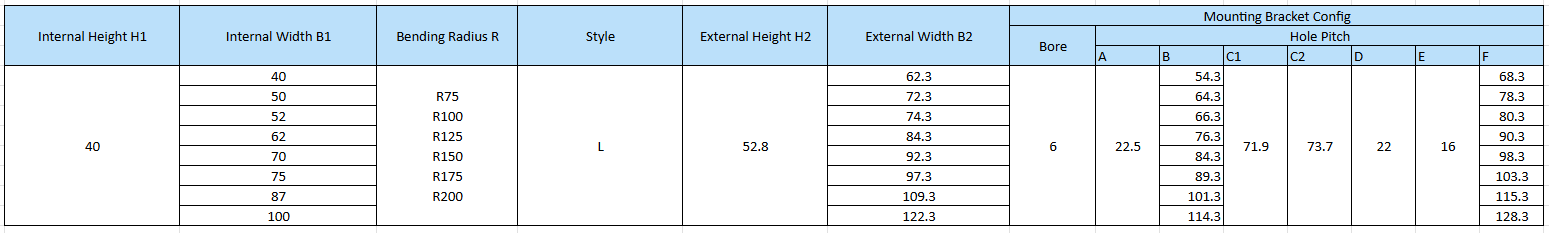

A technical specifications table with columns for internal height, width, bending radius, style, external height, external width, mounting bracket configuration, and bore hole pitch. It includes measurements in millimeters and radii, with some cells spanning multiple rows.
