30 Series Low-Noise Carrier

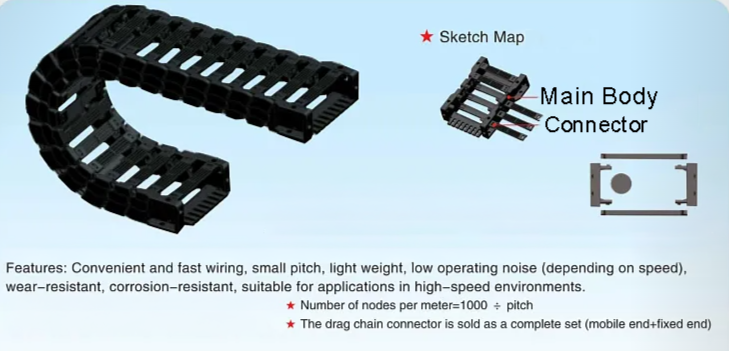

Diagram of a black cable drag chain, with an inset sketch map of the main body connector, highlighting features such as fast wiring, small pitch, lightweight, low noise, wear resistance, corrosion resistance, suitable for high-speed environments, and details on node count and connector sold as a complete set.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening

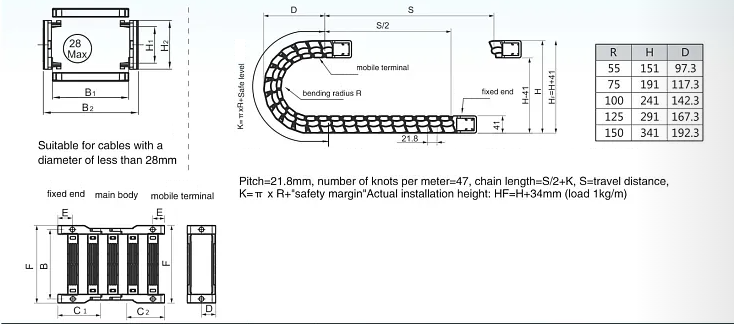

Technical diagram of a cable track system with measurements and specifications, including details for cable compatibility, layout, and installation parameters.

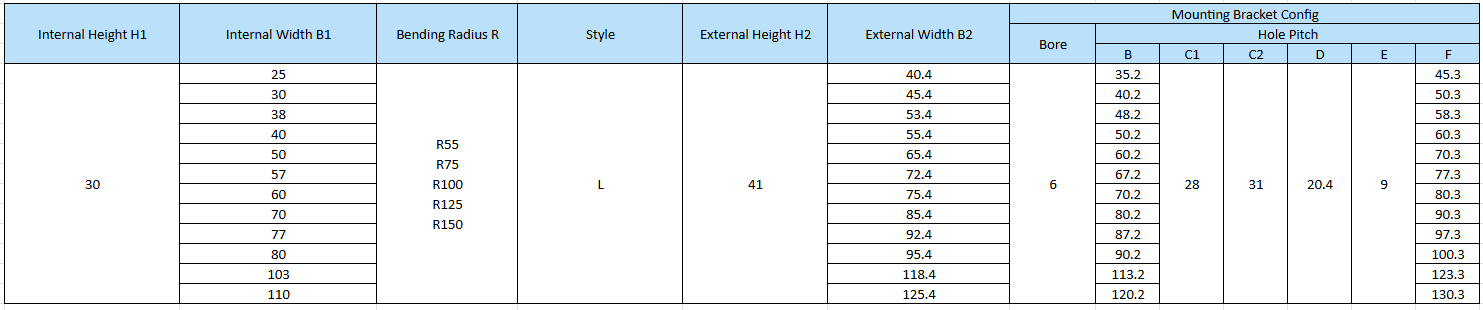

Table showing various specifications including internal height, width, bending radius, style, external height, width, bore, hole pitch, and mounting bracket configuration details.
