25 Series Low-Noise Carrier

Diagram of a black modular cable chain with labeled parts including sketch map, main body, and connector, used for wiring protection in high-speed environments.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening

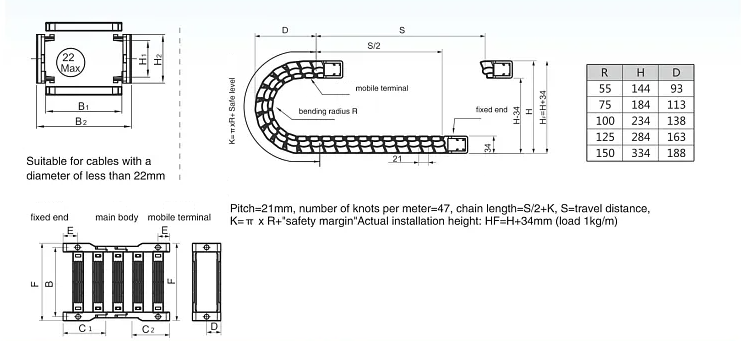

Technical diagram of a cable management chain with detailed measurements and specifications for different sizes.

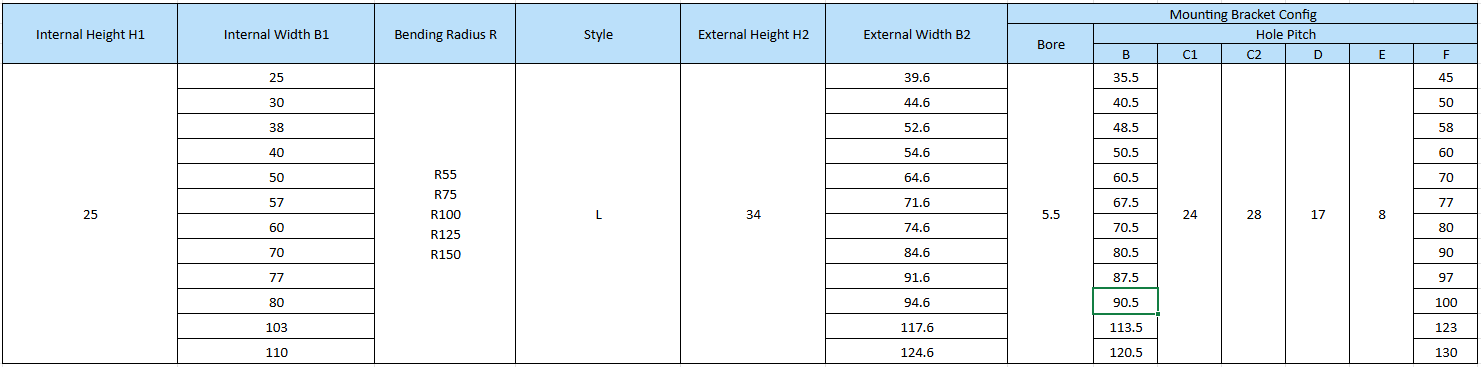

Table displaying dimensions and specifications for mounting brackets, including internal height, width, bending radius, style, external height and width, bore size, hole pitch, and various measurements labeled B through F.
