25s Bridge-Enclosed Carrier with Both Sides Opening

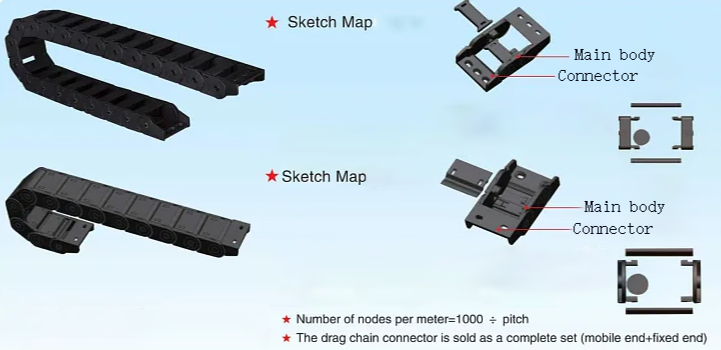

Diagram showing two types of conveyor chain segments and their connectors, with labeled parts such as main body, connector, and sketches of their assembly.

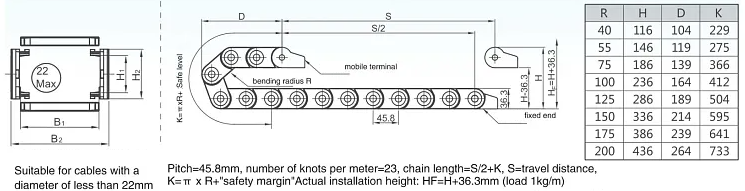

Technical engineering drawing of a chain with detailed dimensions, labels, and specifications for cable suitability, including pitch, bending radius, and metal type.

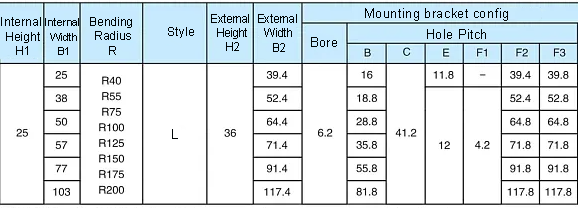

A detailed table with specifications, including internal height, width, bending radius, style, external height and width, mounting bracket configuration, bore size, and hole pitch measurements.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
