25s Bridge Carrier with internal Opening

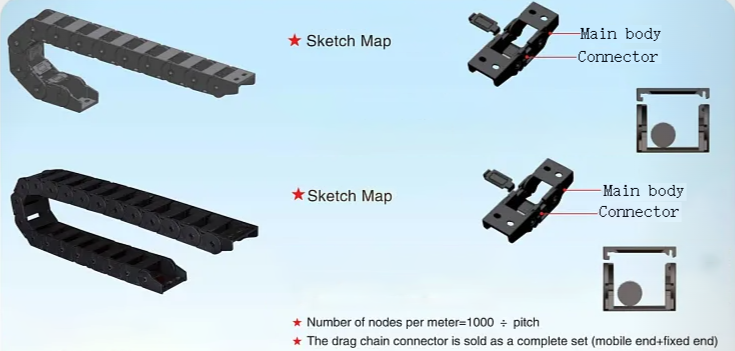

Diagram showing two types of modular track links with labeled parts. The top part features a straight black track with a connector and main body, labeled as part of a sketch map. The bottom part shows a curved black track, also labeled as part of a sketch map, with the main body and connector labeled.

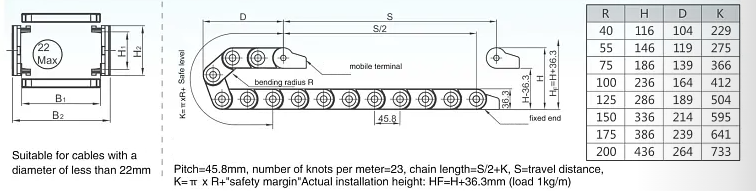

Technical drawing of a chain with dimensions, specifications, and table of sizes.

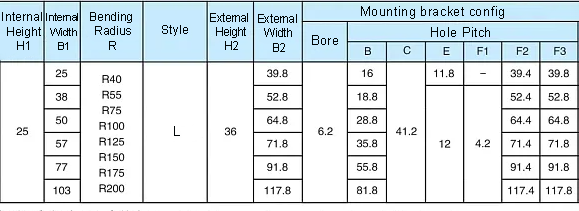

Table showing specifications for different internal heights, widths, bending radii, styles, external heights and widths, and mounting bracket configurations with bore dimensions and hole pitches.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
