18s Semi-Enclosed Carrier with Internal Opening

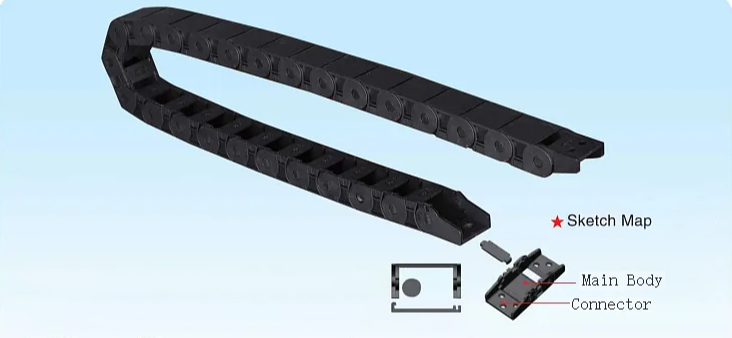

A black 3D-printed track with a rectangular cross-section, a sketch map label, and a main body with a connector part.

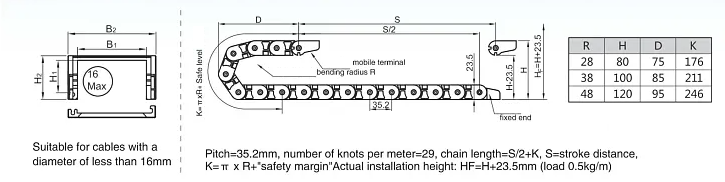

Technical drawing of a chain with dimensions and specifications, showing a mobile terminal, fixed end, and chain span, for using cables with less than 16mm diameter.
Table showing dimensions and mounting bracket configuration details, including internal height, width, radius, style, external height and width, bore size, and hole pitch measurements.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
