15s Semi-Enclosed Carrier with Internal Opening

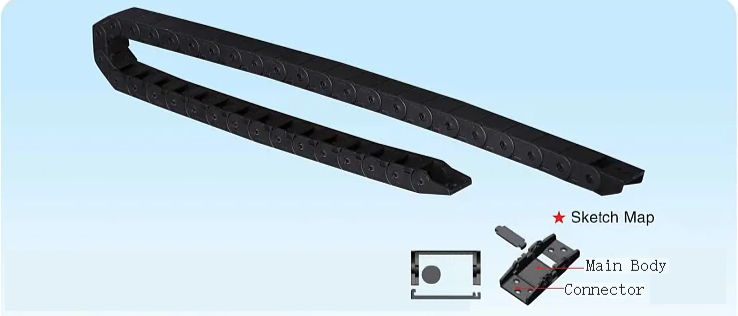

A black cable chain or track with labeled parts including sketch map, main body, and connector, shown against a light blue background.

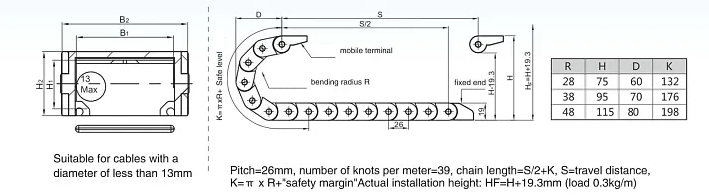

Technical diagram of a chain connector with measurements and specifications for different sizes, showing the chain's dimensions, bending radius, and pin details, and a table listing sizes R, H, D, and K.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
