15s Press-Open Cable Carrier with Outward Opening

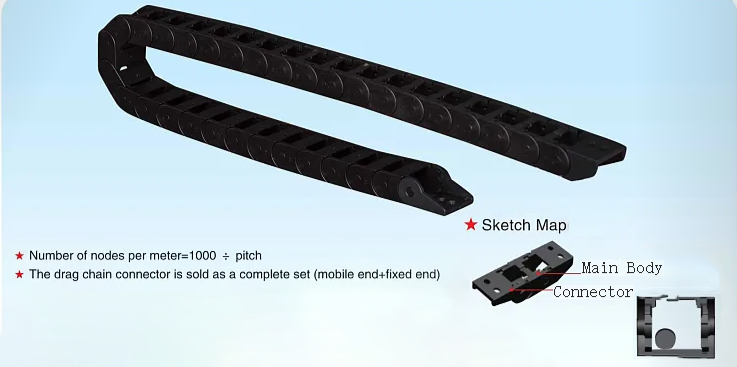

A black plastic chain with multiple connected segments, shown on a light blue background, with a sketch map and labels indicating the main body and connector parts.

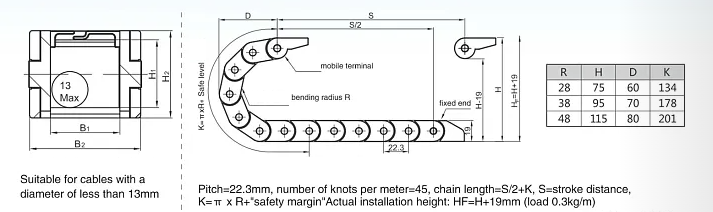

Technical cable sling diagram with measurements, annotations, and specifications.

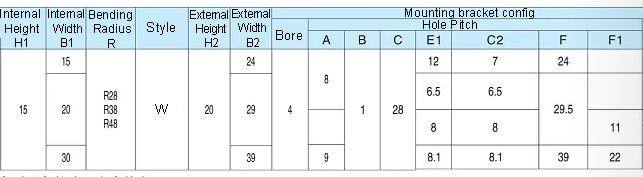

A technical table detailing specifications for a mounting bracket, including internal height, width, bending radius, style, external height, bore, and mounting hole pitch configurations.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
