15s Bridge Cable Carrier with Outward Opening

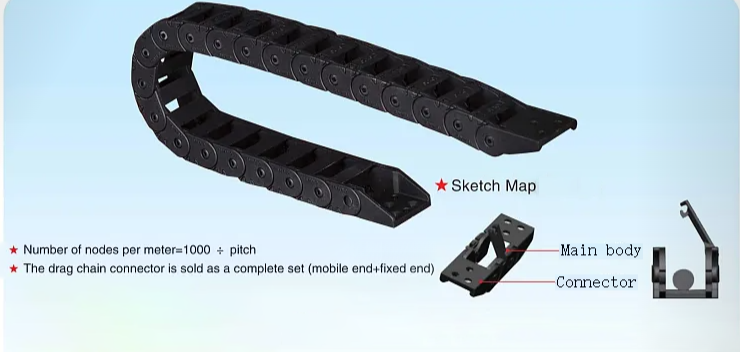

A black plastic drag chain with a close-up of its components, including a main body and connector, displayed on a light blue background. Labels indicate the sketch map, main body, and connector.

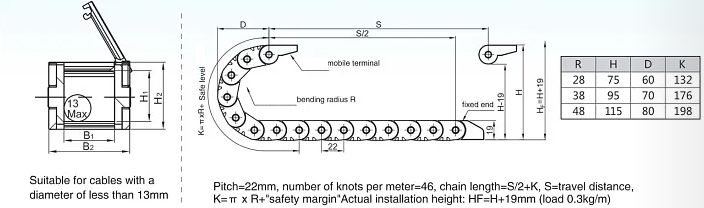

Technical diagram of a chain or cable installation system with detailed measurements and specifications, including dimensions, bending radius, and safety margins.

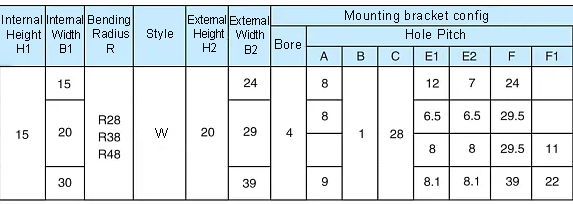

A detailed technical table showing specifications for component dimensions, styles, and mounting bracket configurations, including internal height, width, bending radius, external height and width, style, bore size, hole pitch measurements, and various configurations labeled A to F.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
