10 Series - Press-Open Carrier with Outward Opening

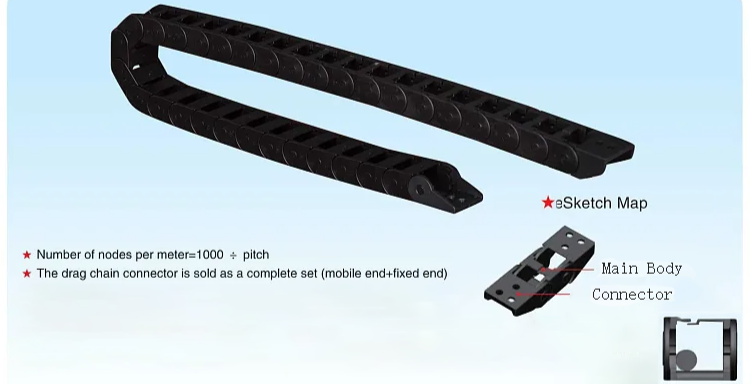

A black plastic drag chain with a complete connector, designed to protect and guide cables or hoses, shown on a light blue background with documentation.

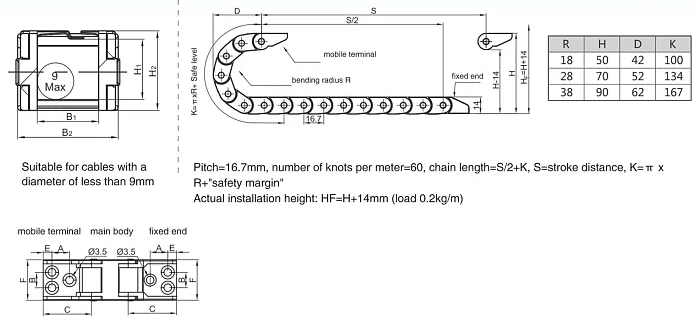

A technical diagram of a roller chain with dimensions and specifications, including parts like the mobile terminal, fixed end, main body, and chain links, with associated measurements and safety details.

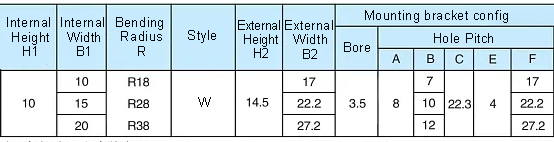

Table with specifications for mounting brackets, including dimensions like internal height, width, bending radius, style, external height, width, and bore details, with hole pitch options A to F.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
