10 Series - Micro Bridge Carrier with Outward Opening

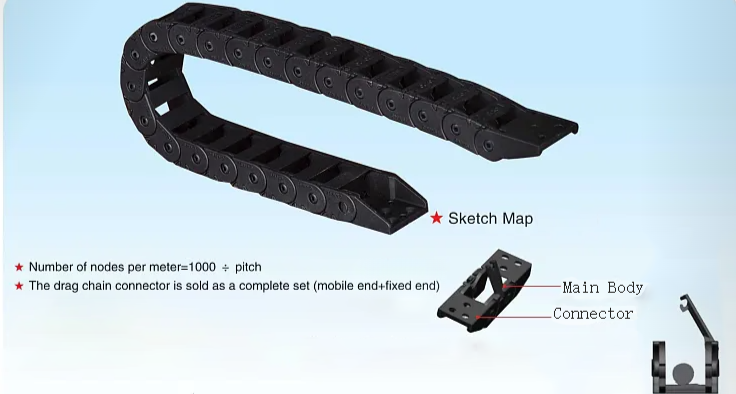

A black plastic curved track with multiple nodes, a small assembly labeled main body and connector, and a small black component in the bottom right corner, used for robotics or mechanical projects.

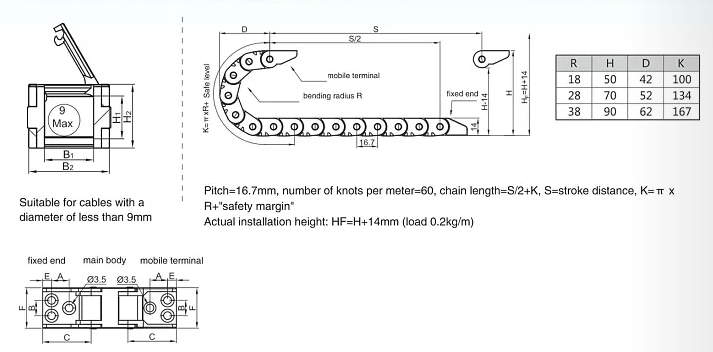

Technical drawing of a cable chain with dimensions and specifications, including a diagram of the chain's cross-section and table of measurements for different sizes.

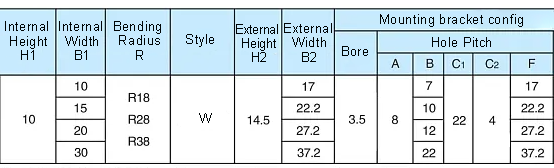

A technical table detailing specifications for a mounting bracket, including internal dimensions, bending radius, style, external height and width, bore size, and hole pitch measurements.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
