10 Series - Micro Bridge Cable Carrier

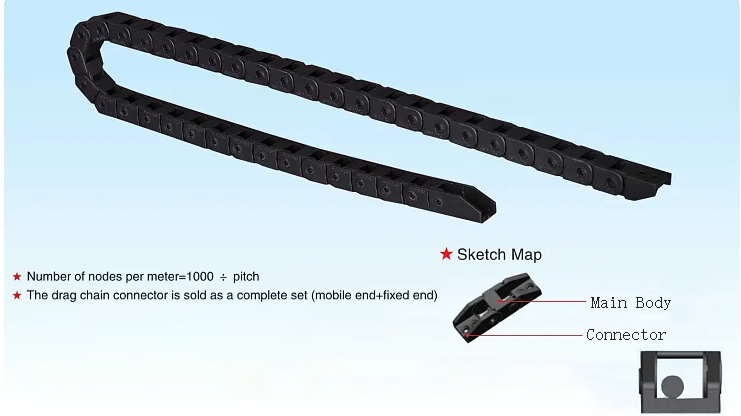

Black plastic conveyor chain with a sketch map showing main body and connector parts.

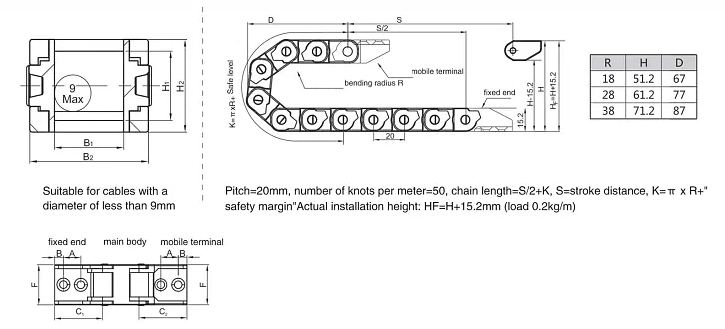

Technical diagram of a chain, showing different views and measurements, along with a chart of chain sizes and dimensions.
Table with specifications including internal height, width, bending radius, style, external height and width, mounting bracket configuration, bore, and hole pitch details.

All Measurements are in MM(Millimeter)

Material:

  • PA6+GF30


Working Temperature :

  • -20°C - 120°C

Style:

  • B - Unopenable

  • W - Outward Opening

  • N - Inner Opening

  • L - Both Way Opening
