100s Bridge Reinforced Cable Carrier

Diagram of a tracked vehicle with a focus on bearings, material information showing rigid PA66, temperature range -40 to 125 degrees Celsius, and technical drawings of fixed and moving brackets with dimensions. Includes formulas for calculating chain length based on travel and chain specifications.

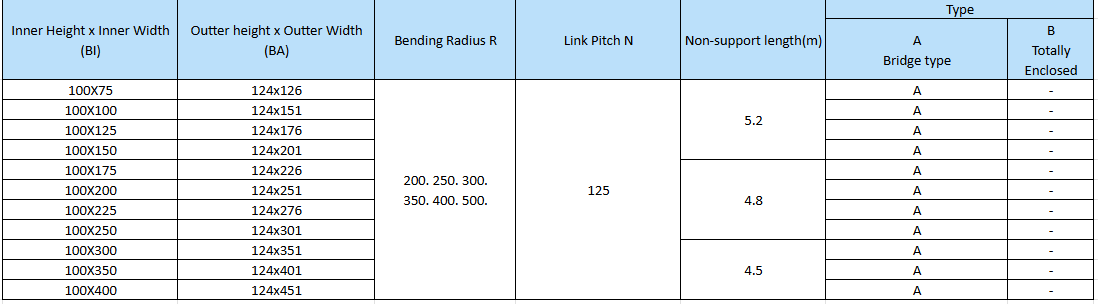

A technical table detailing dimensions, bending radius, link pitch, non-support length, and bridge type for various sizes of a certain component or structure.
